Oil & Gas CNC Machining in Singapore

Sour Service & High-Pressure Metallurgical Control

Components for downhole and subsea environments face extreme pressures, elevated temperatures, and corrosive media containing hydrogen sulfide (H2S) and chlorides. We machine certified corrosion-resistant alloys conforming to NACE MR0175 / ISO 15156 standards with documented heat treatment records, mill test certificates (MTC), and Zeiss CMM dimensional reports.

• Corrosion-resistant superalloys - Inconel 718, Inconel 625, Hastelloy C-276, Monel, and Super Duplex stainless steels
• Superalloy milling & turning - CNC turning of valve stems, mandrels and bushings, and CNC milling of valve bodies and hydraulic manifolds in Inconel and Duplex
• API and NACE compliance - Material verification and dimensional controls meeting oilfield equipment standards
• High-pressure sealing features - Fine surface finishes down to Ra 0.4µm on critical metal-to-metal and elastomeric seal faces
• Complete lot traceability - Heat numbers and mill certificates documented from raw bar stock to finished part

Oil & Gas Applications

• High-pressure valve trim & bodies - Ball valve bodies, plug valves, choke trims, stems, and bonnet assemblies
• Downhole drilling & MWD/LWD tools - Sensor chassis, probe housings, flow tubes, and sub-assemblies
• Subsea connectors & manifolds - Hydraulic manifolds, flange connectors, and lock rings
• Pumping & compression hardware - Impellers, wear rings, shaft sleeves, and high-pressure fluid heads
• Sealing & back-up components - Precision PEEK and filled PTFE back-up rings, chevron seals, and valve seats

Materials for Severe Service Environments

We maintain established machining parameters and tooling setups for high-nickel alloys and duplex steels:

• Inconel (718, 625) - High-strength precipitation-hardened nickel superalloys for downhole tools, subsea wellheads, and sour-service valve trims

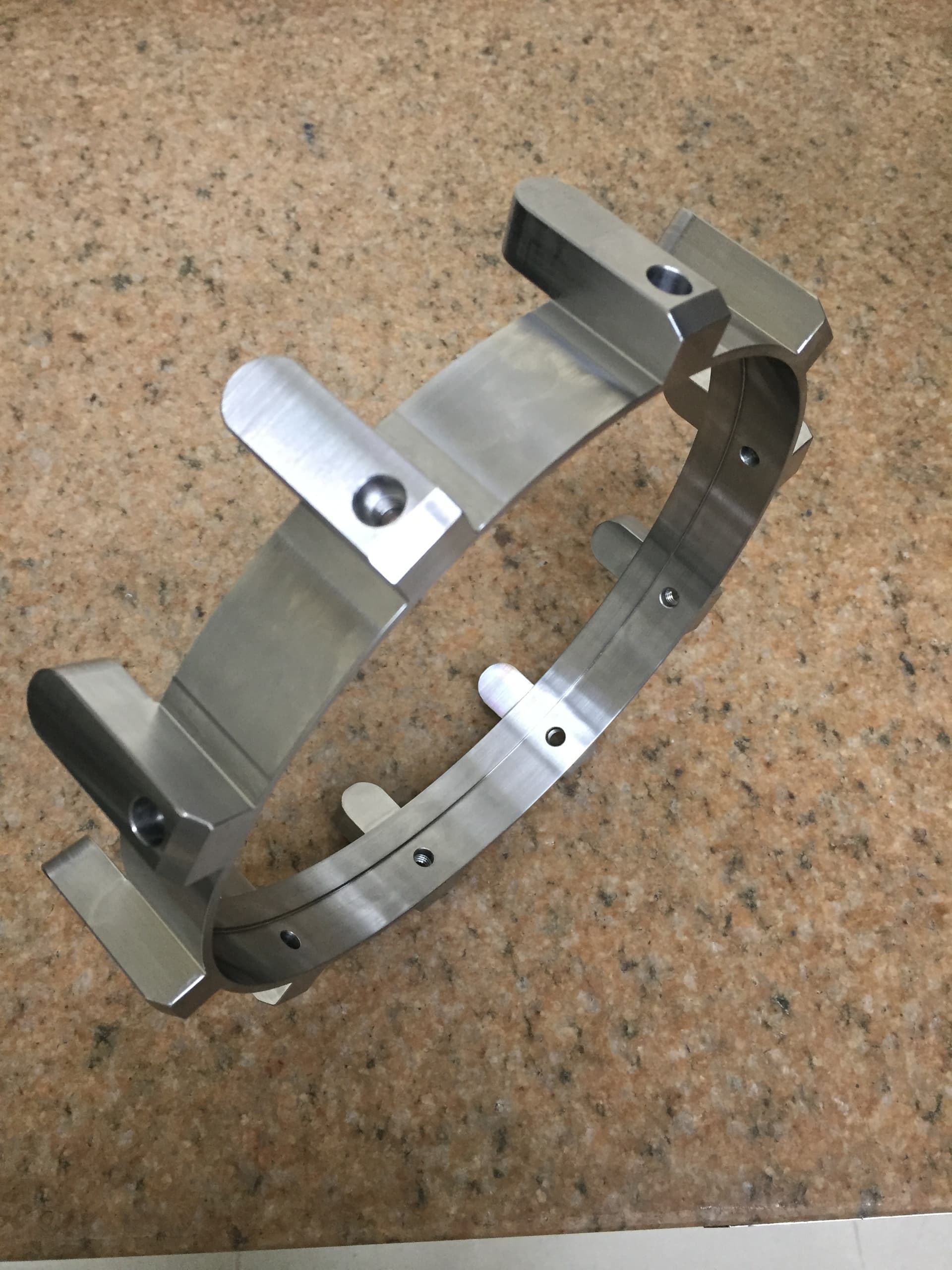

• Stainless steel (316L, 17-4 PH, Duplex 2205, Super Duplex 2507) - High pitting resistance equivalent (PREN) alloys for subsea and marine pipeline hardware
• Alloy steel (4130, 4140, 4340) - High-strength normalized and quenched-and-tempered steels for drilling tools and pressure manifolds
• Brass & copper-nickel - Non-sparking instrumentation components, bushings, and marine hardware
• PEEK and PTFE - High-temperature polymer seats, chevron packing sets, and anti-extrusion rings

Superalloy Machining & Quality Verification

Machining nickel-based superalloys like Inconel 718 requires rigid workholding, high-pressure through-spindle coolant, and controlled cutting speeds to prevent work hardening and residual stresses. Every severe-service component is dimensionally verified on our Zeiss CMM and accompanied by raw material mill test certificates confirming chemical composition and mechanical test properties.

Why Energy Sector Equipment Makers Partner with Shine

• Proven Superalloy Machining - Established cutting parameters, rigid workholding, and high-pressure coolant strategies for Inconel 718/625, Monel, and Duplex 2205 / 2507 steels.
• NACE & 3.1 Traceability - 100% heat number traceability backed by EN 10204 3.1 mill test certificates and hardness validation against NACE MR0175 / ISO 15156.
• Paired Metal & Polymer Seal Machining - Single-source production for metal valve bodies alongside precision-machined virgin/filled PEEK, PTFE, and PCTFE high-pressure seal rings.
• Large Envelope Capacity - Multi-axis turning up to Ø650 × 3,000 mm and milling beds up to 1,600 mm for heavy-duty downhole tools and subsea manifolds.
